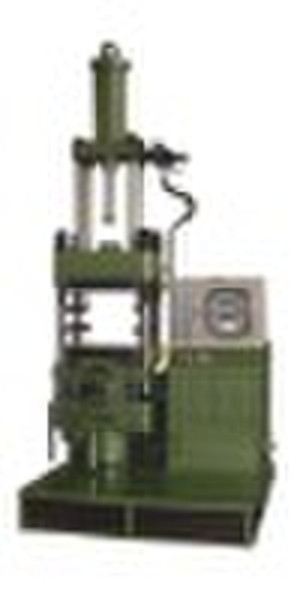

1.0MN/2.0MN Automatic Injection Press

Automatic Injection Press is a simple rubber injection moulding equipment. The machine is widely used in producing automobile,household appliance,electronic parts,medical instruments,sports equipment and other matching rubber parts. It is special to be used in producing complicated shapes and embedded metal parts products. The machine has the functions of pushing-out mould unloading and external prop mould unloading.It can be used as platen vulcanizing press. The machine adopts Mitsubishi PLC system and can store 20 producing moulds.Its characteristics are higher injection pressure,small platen size,large mode-locked pressure and higher unit proportionpressure and so on. Technical Parameters Total pressure1.0MN(100)2.0MN(200)Max. Injection volume2000cc3000ccPlaten size(MM)500×500600×620Daylight Opening(MM)450460Working Layers11Plunger diameter(MM)280360Plunger stroke450460Max hydraulic pressure(MPA)1720Mould Opening(MM)200200Speed of Closingquickly:150mm/s,slowly:8mm/squickly:150mm/s,slowly:8mm/sSpeed of Openingquickly:150mm/s,slowly:8mm/squickly:150mm/s,slowly:8mm/sTotal heating power(KW)1012Pump power(KW)7.57.5Overall Dimension(L×W×H)(MM)1750×1100×33001800×1100×4000Weight5100Kg6500Kg
